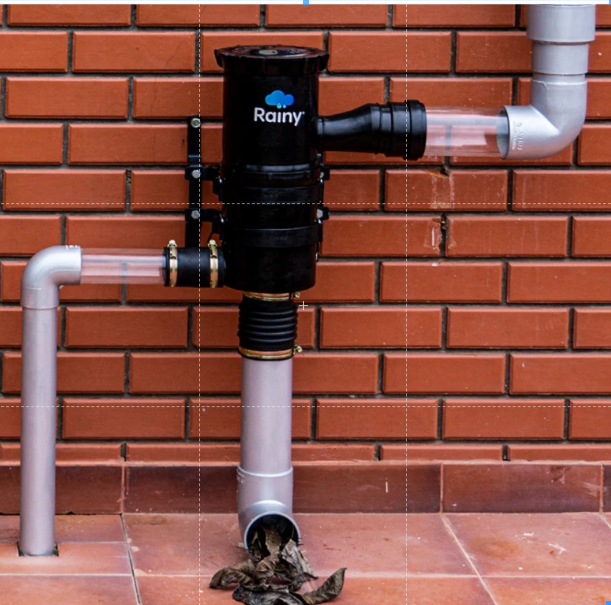

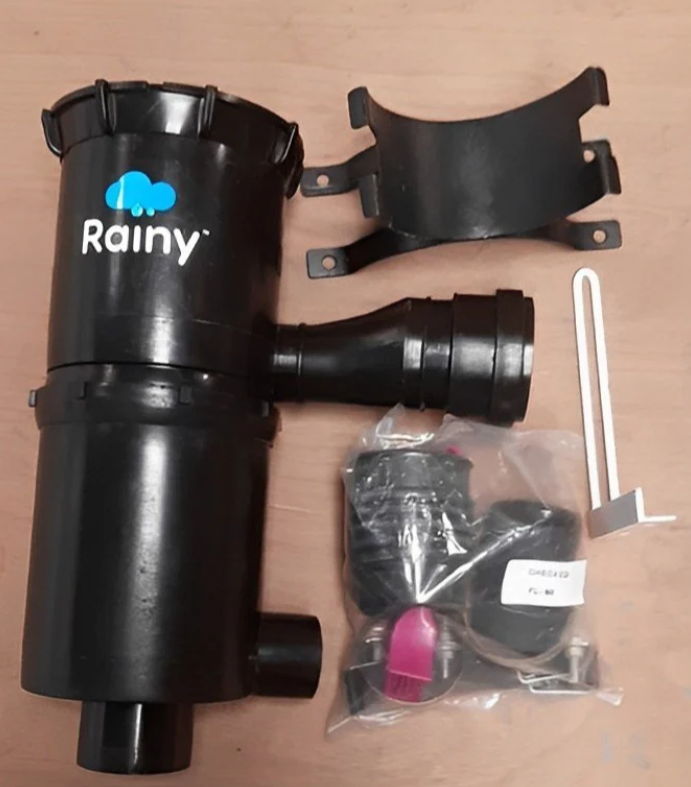

Rainy Rainwater Harvesting Filters FL 500

Price 19089 INR/ Piece

Get a Price/Quote

Rainy Rainwater Harvesting Filters FL 500 Specification

Product Type
Rainwater Harvesting Filters

General Use
Rainwater Filtration for Underground/Overhead Tanks

Material
Stainless Steel

Type
FL 500

Capacity
Up to 50,000 Litres Per Hour

Weight (kg)
12 kg

Computerized
No

Automatic
Semi-Automatic

Ozone Generator
No

UV Sterilizer
No

Control System
Mechanical

Filter Bag No.
Single Chamber

Filter Area
500 sq cm

Flow Rate
10,00050,000 LPH

Dimension (L*W*H)
550 mm x 240 mm x 180 mm

Feature
High Efficient Filtering, Easy Installation, Durable

Color
Black

Rainy Rainwater Harvesting Filters FL 500 Trade Information

Minimum Order Quantity
5 Units

Sample Available
Yes

Main Domestic Market
All India

About Rainy Rainwater Harvesting Filters FL 500

Open-ended & self cleaning.

No moving parts, no wear & tear.

Prevents water logging in low-lying areas.

Auto flush out of dirt & debris.

Retrofit: any local plumber can fix.

Cost effective & affordable to the common man.

No external power.

Works by gravity headless than -2 feet.

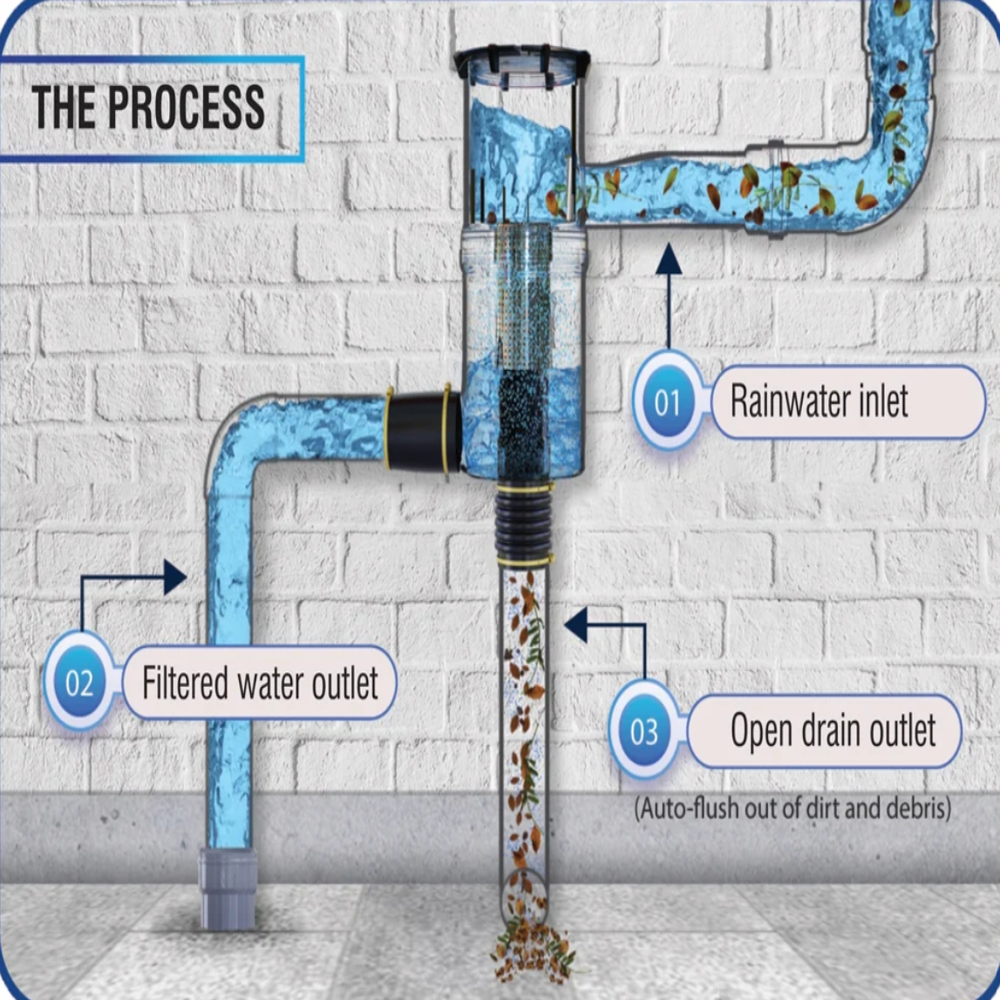

Working principle: Cohesion and Centrifugal Force.

Suitability of Area - Upto 500 sq. mtr.

Inlet - 110mm

Outlet - 110mm

Highly Efficient Rainwater Filtration

The FL 500 filter uses a 250-micron mesh to effectively capture debris and particulates from rainwater before it enters your storage tanks. This ensures the harvested water remains clean while preventing blockages and extending the lifespan of your water system infrastructure.

Sturdy Construction for Longevity

Crafted from stainless steel and coated for corrosion resistance, the FL 500 is engineered for durability even in adverse weather conditions. Its robust build and low-maintenance needs make it ideal for both residential and commercial settings.

Simple Installation and Maintenance

The wall-mountable design and mechanical control system make setup straightforward. Manual rinsing is required for cleaning, which keeps operating costs low, enhancing convenience for users and facility managers alike.

FAQs of Rainy Rainwater Harvesting Filters FL 500:

Q: How does the Rainy FL 500 filter rainwater for storage purposes?

A: The FL 500 uses a 250-micron stainless steel mesh to physically filter out leaves, sediment, and other contaminants from rainwater collected from rooftops. Cleaned water then flows into underground or overhead tanks for safe storage.

Q: What is the installation process for the FL 500 filter and where can it be mounted?

A: The FL 500 is designed for wall mounting and comes with necessary fittings. It can be installed close to the rainwater downpipe, near tank inlets, or wherever gravity flow from rooftop catchments is accessible. Professional installation is recommended for optimal performance.

Q: When should I clean the FL 500 filter, and what is the method?

A: The filter should be manually rinsed when you notice reduced flow or during regular maintenance checks, typically after heavy rainfall. Simply remove, rinse the mesh with clean water, and reassembleits a quick and tool-free process.

Q: Where is the FL 500 filter suitable for use?

A: It is suitable for individual houses, apartment buildings, institutions, and commercial complexes across India, wherever rainwater harvesting is desired for underground or overhead tank storage.

Q: What are the key benefits of using the Rainy FL 500 rainwater harvesting filter?

A: Key benefits include high-efficiency filtration, durable stainless steel construction, low maintenance, ease of installation, and the ability to handle up to 50,000 litres per hourmaking it an economical choice for various property types.

Q: Is the FL 500 filter compatible with computerised or fully automatic systems?

A: No, the FL 500 operates with a mechanical control system and is semi-automatic. It does not have computerized controls or automatic self-cleaning features, promoting simplicity and reliability.

Q: What water sources and tank types can the FL 500 be used with?

A: The FL 500 is designed specifically for rainwater harvesting from rooftop catchments. It can direct filtered water into both underground and overhead tanks for later use.
