Rainy Rainwater Harvesting Filters FL 250

Price 9904 INR/ Piece

Get a Price/Quote

Rainy Rainwater Harvesting Filters FL 250 Specification

Product Type
Rainwater Harvesting Filters

General Use
Rainwater Filtration for Buildings

Material
Stainless Steel

Type
Automatic Hydro Dynamic Filter

Capacity
Up to 250 liters per minute

Weight (kg)
12 kg

Computerized
No

Automatic
Yes

Ozone Generator
No

UV Sterilizer
No

Control System
Hydrodynamic Flow Control

Filter Bag No.
1

Filter Area
0.12 sq. meters

Flow Rate
250 liters per minute

Voltage
Not Required (non-electric)

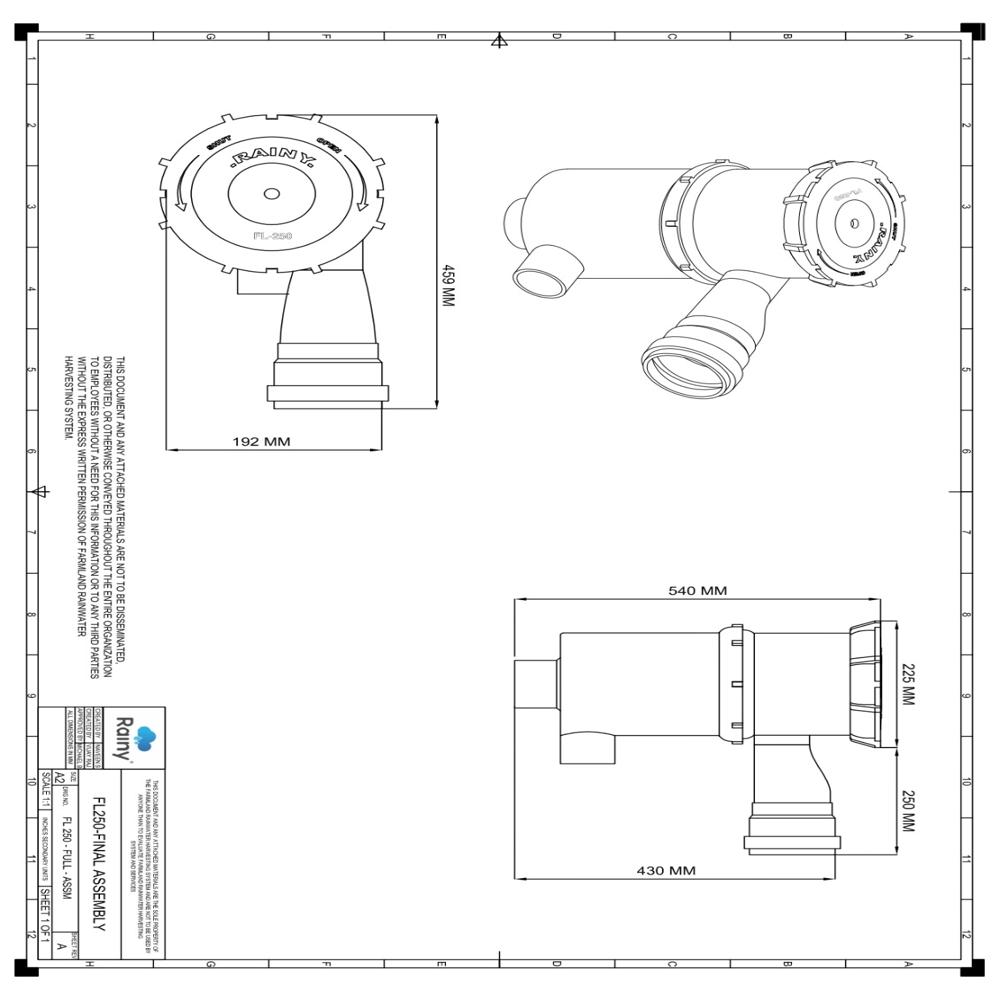

Dimension (L*W*H)
45 x 21 x 21 cm

Feature
High efficiency, easy to install, maintenance-free

Color
Black

Rainy Rainwater Harvesting Filters FL 250 Trade Information

Minimum Order Quantity
5 Units

Sample Available
Yes

Main Domestic Market
All India

About Rainy Rainwater Harvesting Filters FL 250

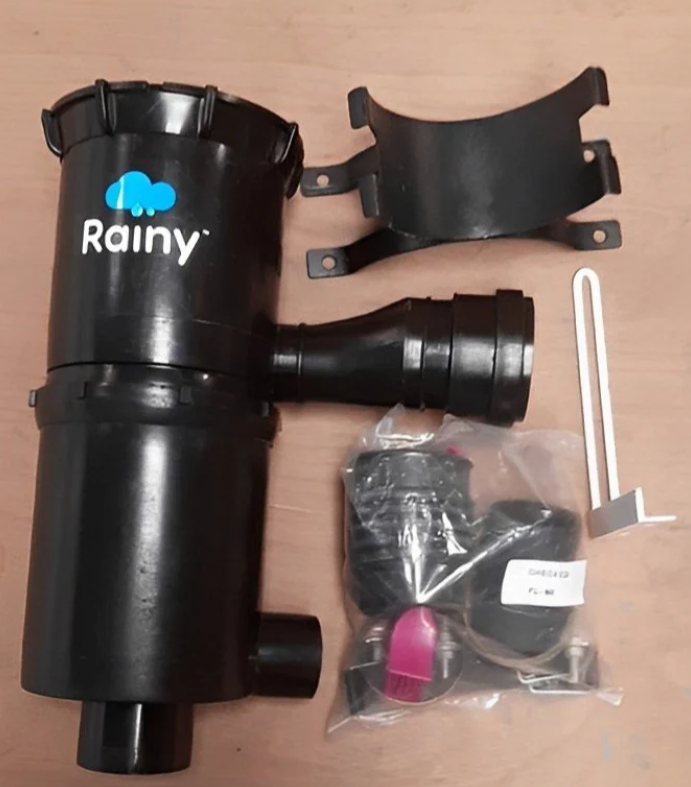

Included Components: HDPE filter housing with "SS-304" filter element, anti-rust wall clamp set with straps & anchor bolts, clean & drain outlet connecting bushes, clean water outlet adapter, filter connecting hose clips, "L"-Clamps, brush and user manual
Unique Inbuilt Self-Cleaning Mechanism: Prevents clogging by automatically flushing out dirt and debris from rainwater, It is suitable for roof-area up to 250 square meters
> 90% Efficiency At All Times: No external energy, auto switch over between cohesive and centrifugal modes of operation enables filtering at variable rain intensities
Easy To Install: The inlet and outlet sections of the filter can be individually rotated up to 360 degrees to suit any site conditions, all the fitting hardware required for wall-mounting and a detailed installation manual are included in the packaging
Highly Durable: High-quality uv-stabilised HDPE housing, high-performance, multilayer filter element made of stainless steel "SS-304", cost-effective and advantageous, no maintenance, no stagnation of water/impurities, improves water quality through aeration

Efficient Rainwater Filtration for Buildings

Rainy Rainwater Harvesting Filter FL 250 ensures high-volume filtration for rooftops, supporting sustainable water usage in homes, offices, and institutions. Its robust stainless steel construction and self-cleaning mechanism provide long-term reliability. Whether installed in a private residence or a large commercial facility, this filter maximizes rainwater purity with minimal upkeep.

Simple Installation and Low Maintenance

The FL 250 is designed for quick wall-mounted or vertical installation. Its hydrodynamic flow control and automatic operation mean you wont need electricity or constant manual attention. The self-cleaning three-stage filtration minimizes blockages, allowing for infrequent, hassle-free maintenance.

High-Performance, Non-Electric Design

With a capacity to filter up to 250 liters per minute and requiring only a 1-meter head of inlet pressure, the FL 250 operates efficiently using hydrodynamic flow, not electricity. This reduces both operational costs and environmental impact, while maintaining exceptional performance.

FAQs of Rainy Rainwater Harvesting Filters FL 250:

Q: How does the Rainy Rainwater Harvesting Filter FL 250 work?

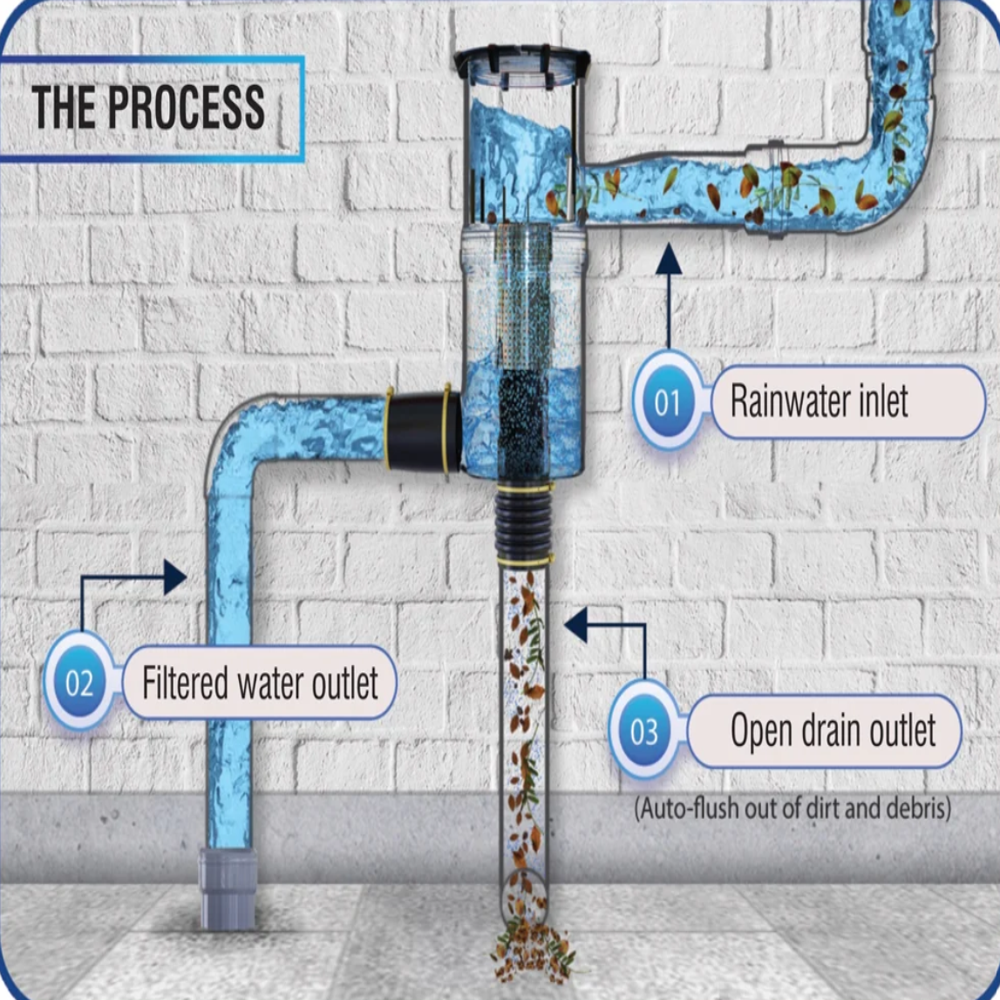

A: The FL 250 employs a three-stage filtration process using a hydrodynamic flow control system. Rainwater enters through the 75 mm inlet, passes through stainless steel mesh screens, and exits via the 63 mm outlet, effectively removing debris and impurities before storage or use.

Q: What maintenance does the FL 250 filter require?

A: Maintenance is minimal due to its self-cleaning feature. Periodic visual checks and occasional rinsing of the stainless steel mesh are recommended to ensure maximum filtration efficiency, especially after heavy rainfall.

Q: When and where should this filter be installed?

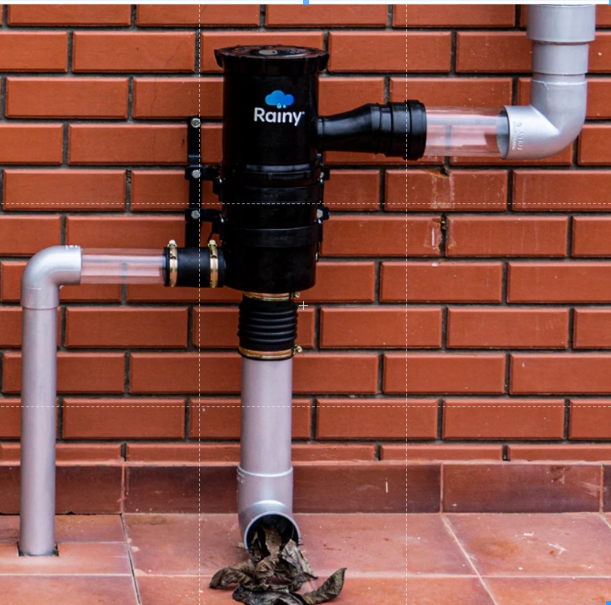

A: Install the FL 250 on a wall or vertically close to the downpipe of your buildings rooftop rainwater collection system. It is suitable for buildings with roof areas between 2,000 and 5,000 sq. ft. and can be fitted in residential, commercial, or institutional premises.

Q: What are the benefits of using a hydrodynamic, non-electric filter like the FL 250?

A: The FL 250 operates entirely without electricity, making it energy-efficient, cost-effective, and reliable during power outages. The automatic hydrodynamic flow system ensures consistent, high-capacity filtration and reduces long-term operational expenses.

Q: How does the filter handle varying flow rates or different weather conditions?

A: The filter is designed to handle up to 250 liters per minute and operates efficiently at an inlet pressure as low as 1 meter head. Its stainless steel construction and 316L mesh screen withstand operating temperatures from 5C to 55C, offering robust performance in diverse climates.
