35 Litres HydroPneu Fixed Diaphragm MS Pressure Tanks

Send Inquiry

Request To Call Back

35 Litres HydroPneu Fixed Diaphragm MS Pressure Tanks

Name: 35 Litres HydroPneu Fixed Diaphragm MS Pressure Tanks
Brand: AQUA Products & Services Pvt. Ltd.
Price: 4734.0 INR
Availability: InStock

Price 4734.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

35 Litres HydroPneu Fixed Diaphragm MS Pressure Tanks Specification

Working Temperature
-10C to 100C

Discharge Pressure
Up to 8 bar

Theory
Pressure Tank with Fixed Diaphragm

Mounting Type
Floor Mounted with steel supports

Inlet/Outlet
1 inch BSP Female

Control System
Manual/Air Valve Pre-pressurization

Noise Level
Silent Operation

Features
Pre-charged, Corrosion Resistant, Replaceable Diaphragm

Caliber
1 inch

Material
Mild Steel (MS) with epoxy powder coating

Size
35/10

Structure
Cylindrical, Horizontally or Vertically Mounted

Product Type
Vertical

Standard
CE Certified / ISI Marked

Color
White

Pressure
Max Working Pressure: 8 bar

Usage
Water pressure boosting and regulation in plumbing systems

Application
Domestic, Commercial, and Industrial Water Systems

Seals Type
NBR Rubber Diaphragm

Capacity
35 Litres

External Finish
Epoxy Powder Coated

Connection Thread Standard
BSP (British Standard Pipe)

Color
Blue

Net Weight
Approx. 11 kg

Tank Height
Approx. 590 mm

Internal Lining
Food Grade Polymeric Coating

Tank Diameter
Approx. 340 mm

Maximum Test Pressure
10 bar

Pre-charge Pressure
1.5 bar

35 Litres HydroPneu Fixed Diaphragm MS Pressure Tanks Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Week

About 35 Litres HydroPneu Fixed Diaphragm MS Pressure Tanks

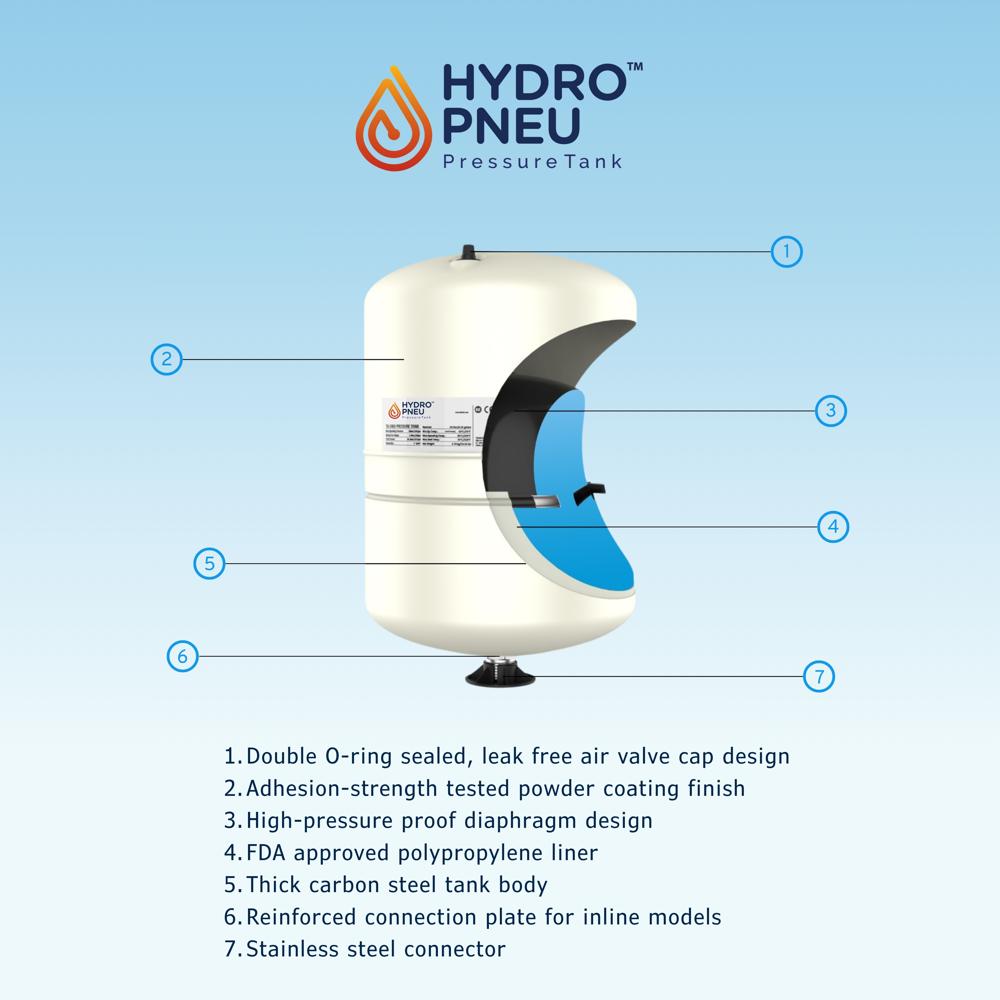

HydroPneu Fixed Diaphragm Type Pressure Tank (HPFDV Series)Heavy-Duty Butyl Rubber Fixed DiaphragmReinforced stainless steel water connectionDouble O-ring sealed, leak free air valve cap designDurable & highly adhesive powder coating finishNylon & Glassfiber pump stand and feetExtensively tested, maintenance free tanksFully made of food-grade and FDA approved PPR liner

Reliable Pressure Boosting and Water Regulation

Designed for consistent water pressure, this pressure tank is essential in stabilizing water flow across residential, commercial, and industrial plumbing systems. Its robust construction and pre-charged system ensure reliable performance, minimizing water hammer and pump cycling for enhanced longevity of your plumbing infrastructure.

Safe, Durable, and Hygienic Materials

With a food-grade polymeric internal lining and a corrosion-resistant epoxy powder coat, the tank guarantees safe water storage and delivery. The NBR rubber diaphragm is replaceable, offering a hygienic, long-lasting solution that withstands a wide range of temperatures, making it suitable for diverse climates.

Simple Installation and Maintenance

The HydroPneu pressure tank's standard 1-inch BSP female connections and straightforward mounting system allow for quick installation. Its manual/air valve pre-pressurization system and replaceable diaphragm make maintenance hassle-free, ensuring minimal downtime and reliable water system performance.

FAQ's of 35 Litres HydroPneu Fixed Diaphragm MS Pressure Tanks:

Q: How is the 35 Litres HydroPneu Pressure Tank installed in a water system?

A: This tank can be mounted horizontally or vertically using the provided steel supports. Connect the 1-inch BSP female thread to your plumbing system. Ensure the pre-charge is set to 1.5 bar before operation for optimal pressure control.

Q: What are the main benefits of using a fixed diaphragm pressure tank in plumbing systems?

A: The tank stabilizes water pressure, reduces pump cycling, and minimizes noise. Its pre-charged design helps prevent water hammer and contributes to the longevity and efficiency of pumps and other components.

Q: When should the diaphragm inside the tank be replaced?

A: The diaphragm should be inspected during routine maintenance and replaced if any signs of wear, leakage, or reduced pressure regulation are observed. Thanks to its design, the NBR rubber diaphragm is easily replaceable.

Q: Where can this pressure tank be used effectively?

A: It is suitable for domestic, commercial, and industrial water systems, wherever stable water pressure and reliability are required. The tank is often used in buildings, irrigation systems, and water booster setups.

Q: What safety features are incorporated in this pressure tank?

A: The tank is CE Certified/ISI Marked and includes a food-grade polymeric internal coating for water safety. The epoxy powder-coated exterior and corrosion-resistant materials ensure long-term safety even under demanding conditions.

Q: How does the manual/air valve pre-pressurization process work?

A: Before system start-up, air is introduced via the pre-charge valve to achieve the factory-specified 1.5 bar. This ensures effective pressure regulation and optimal water delivery performance.
