300L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks

Send Inquiry

Request To Call Back

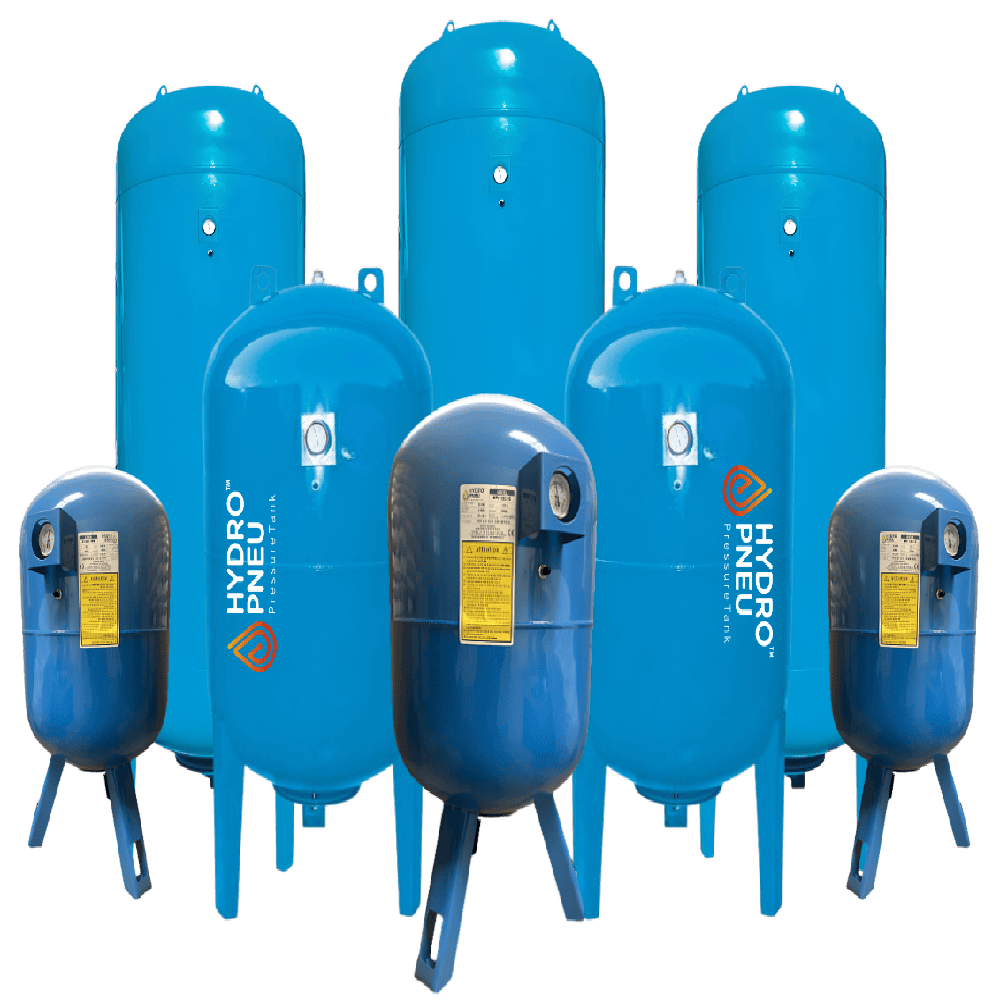

300L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks

Name: 300L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks
Brand: AQUA Products & Services Pvt. Ltd.
Price: 126960.0 INR
Availability: InStock

Price 126960.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

300L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks Specification

Theory
Hydropneumatic Pressure Regulation

Working Temperature
-10C to +99C

Inlet/Outlet
2 BSP Threaded

Noise Level
Silent, No Mechanical Noise

Caliber
2 Inch

Discharge Pressure
25 Bar

Flow Rate
Dependent on System Design

Mounting Type
Floor Mounted

Features
Replaceable Bladder Design, Corrosion Resistant Coating, Maintenance Friendly

Material
Mild Steel (MS)

Structure
Vertical Cylindrical with Replaceable Bladder

Size
300/25

Standard
ASME/CE Certified

Product Type
Vertical

Color
Blue

Pressure
25 Bar

Usage
Water Pressure Boosting, Pump Systems, HVAC

Application
Water Supply Systems, Pressure Booster Sets, Industrial and Commercial Usage

Seals Type
NBR/EPDM

Capacity
300 Litres

Tank Finish
Epoxy Powder Coated

Installation Position
Vertical Only

Service Life
Designed for Extended Maintenance Intervals

Test Pressure
37.5 Bar

Weight (Empty)
Approx. 95 kg

Connection Type
Threaded / Optional Flanged

Dimensions
Approx. 600 mm Diameter x 1600 mm Height

Lining
Internal Epoxy Coating for Anti-Corrosion

Bladder Material
High-Quality EPDM / NBR Replaceable

Max Working Pressure
25 Bar

Inspection Port
Available on Request

300L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Week

About 300L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks

300L HydroPneu Replaceable Bladder Type Pressure TankHPV 300 /25Make: HyrdoPneuMinimum Order - 5 QtysCapacity above 500 L - Available upon Request! PN 10 - upto 5000 Ltrs. PN 16 - upto 2000 Ltrs. PN 25 - upto 1000 Ltrs.

Robust Hydropneumatic Performance

The HydroPneu 300L/25Bar tank seamlessly regulates water pressure in demanding settings. Its high-quality replaceable bladder and internal epoxy lining provide optimal efficiency and extended operational lifespans, ensuring reliable function in booster sets and critical water supply systems.

Engineered for Longevity and Safety

Constructed from durable mild steel and expertly powder-coated, this tank is engineered to endure high pressures and variable temperatures. The corrosion-resistant internal coating and service-friendly replaceable bladder design minimize downtime and maximize ease of maintenance.

Versatile Installation and Broad Applications

This floor-mounted vertical tank adapts to multiple connection types, serving commercial and industrial pressure control requirements. Its silent operation and blue epoxy finish make it suitable for public and private installations where reliability and discreet noise levels are paramount.

FAQ's of 300L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks:

Q: How does the replaceable bladder benefit the operational life of the HydroPneu pressure tank?

A: The replaceable EPDM or NBR bladder isolates water from the tank's steel body, preventing corrosion and extending the service life. If wear occurs, only the bladder needs replacing, making maintenance cost-effective and straightforward.

Q: What installation positions are allowed for the 300L/25Bar tank, and where is it typically used?

A: This tank must be installed vertically as designed. It is commonly used in water supply systems, pressure booster sets, HVAC, and industrial or commercial water pressure regulation.

Q: What is the process for connecting the tank to a water system?

A: The tank comes with 2-inch BSP threaded inlets and outlets for secure attachment. Optional flanged connections are available to fit specific system requirements, ensuring flexible integration into existing setups.

Q: When should the bladder in the pressure tank be inspected or replaced?

A: Bladder inspection or replacement schedules depend on use and water quality, but the design enables extended intervals between maintenance. An inspection port is available upon request to facilitate convenient checks without system shutdown.

Q: What are the major advantages of the epoxy powder-coated finish and internal epoxy lining?

A: The exterior powder coating and internal epoxy lining protect the mild steel structure from corrosion, humidity, and chemical exposure, ensuring a long lifespan and sustaining performance even in challenging environments.

Q: Is the 300L/25Bar HydroPneu tank suitable for noise-sensitive areas?

A: Yes. The tank operates silently with no mechanical noise, making it ideal for residential, commercial, or institutional spaces where silent operation is required.
