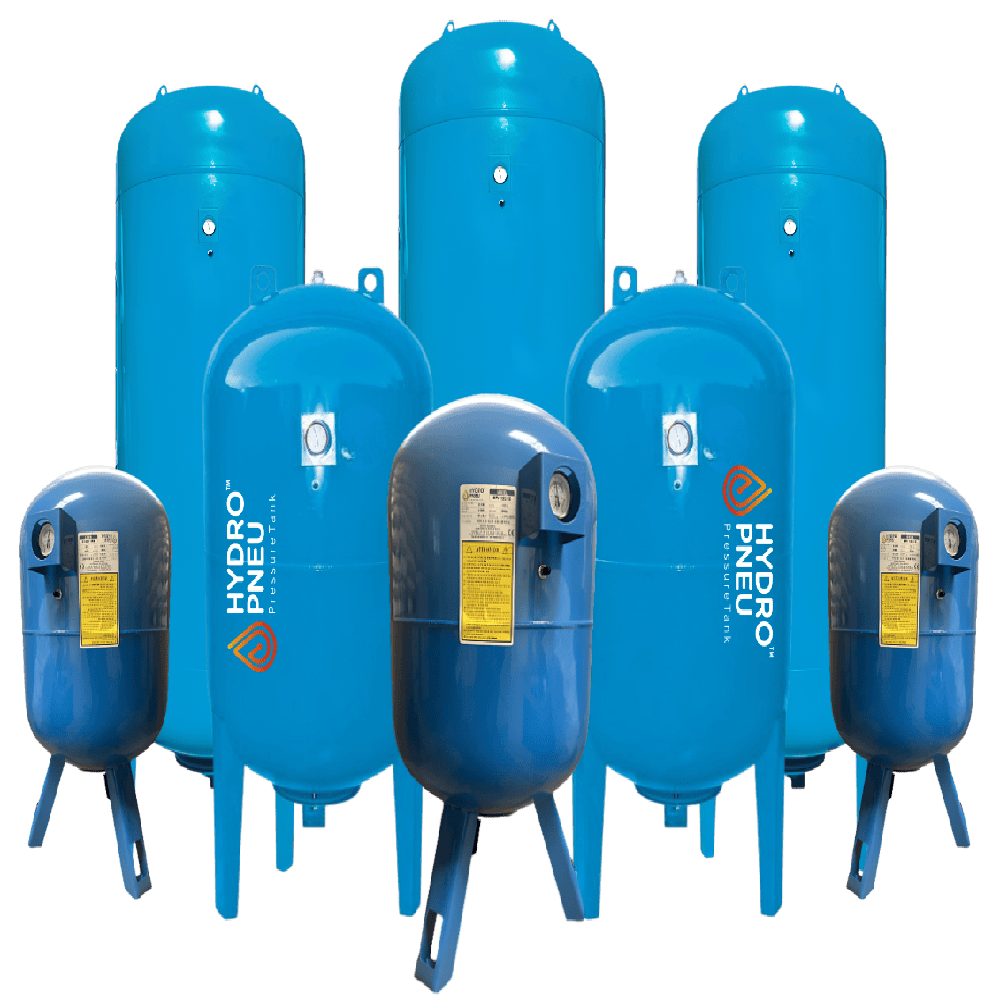

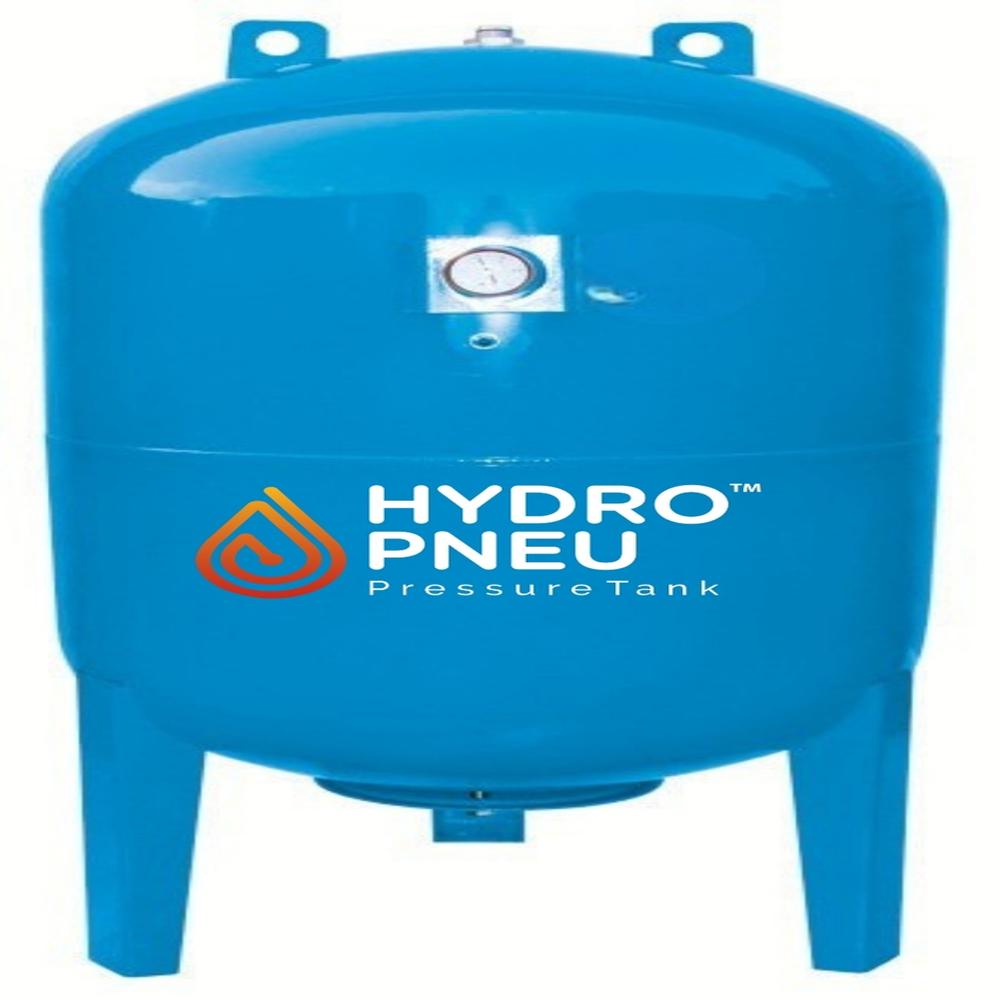

200L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks

Name: 200L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks
Brand: AQUA Products & Services Pvt. Ltd.
Price: 78585.0 INR
Availability: InStock

Price 78585.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

200L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks Specification

Discharge Pressure
Up to 25 Bar

Working Temperature
-10C to 100C

Features
Replaceable Bladder, Corrosion Resistant, High Pressure Rating

Theory
Bladder Pressure Tank

Noise Level
Silent/Noise Free

Control System
Pressure Controlled

Caliber
2 Inch

Inlet/Outlet
2 BSP/NPT Threaded

Mounting Type
Floor Mounted

Material
MS (Mild Steel) with Epoxy Powder Coating

Size
200/25

Structure
Cylindrical, Vertical Mount

Standard
CE & ISO 9001:2015 Certified

Product Type
Vertical

Color
Blue

Pressure
25 Bar Max

Usage
Hydropneumatic Systems, Pressure Boosting, Water Supply

Application
Water, Air, Liquid Storage and Pressure Regulation

Seals Type
NBR/EPDM Replaceable Bladder

Capacity
200 Litres (L)

Operating Orientation
Vertical Type

Inspection Port
Included for Easy Maintenance

Safety Valve Connection
Provision Provided

Tank Lining
Epoxy Powder Coated (Internal & External)

Connection Location
Bottom Inlet/Outlet, Top Air Valve

Weight
Approx. 56 kg (Empty)

Test Pressure
37.5 Bar

Max Operating Pressure
25 Bar

Bladder Material
Nitrile Rubber (NBR) / EPDM (Options Available)

Finish
Gloss Blue/Red Epoxy

Shell Thickness
6 mm (Typical)

200L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Week

About 200L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks

200L HydroPneu Replaceable Bladder Type Pressure TankHPV 200 /25Make: HyrdoPneuMinimum Order - 5 QtysCapacity above 500 L - Available upon Request! PN 10 - upto 5000 Ltrs. PN 16 - upto 2000 Ltrs. PN 25 - upto 1000 Ltrs.

Designed for Durability and Safety

Constructed from mild steel and finished with an epoxy powder coating, the 200L/25Bar HydroPneu tank guarantees longevity even in tough conditions. Its robust 6 mm shell, replaceable bladder, and internal/external corrosion resistance make it a reliable solution for demanding hydropneumatic applications. The integrated safety features, such as the inspection port and provision for a safety valve, further enhance operational security.

Versatile Applications and Easy Maintenance

This pressure tank is well suited for a range of uses including water supply, pressure boosting, and air or liquid storage. With options for Nitrile Rubber (NBR) or EPDM bladders and a convenient inspection port, maintenance is simplified. The tank's bottom inlet/outlet and top air valve streamline installation and servicing.

Certified Quality and Noise-Free Operation

Adhering to CE and ISO 9001:2015 standards, this pressure tank guarantees quality and safety. The vertical, floor-mounted structure operates silently, making it ideal for residential, commercial, or industrial environments where quiet functionality is valued.

FAQ's of 200L/25Bar HydroPneu Replaceable Bladder MS Pressure Tanks:

Q: How does the replaceable bladder in this tank enhance maintenance and performance?

A: The replaceable bladder, available in either NBR or EPDM, allows easy servicing and replacement, minimizing downtime and extending the tank's operational lifespan. This feature ensures consistent pressure regulation and reduces the risk of internal corrosion.

Q: What are the primary applications for the 200L/25Bar HydroPneu pressure tank?

A: This tank is ideal for water supply systems, pressure boosting, hydropneumatic systems, and storage or regulation of water, air, or other compatible liquids in both commercial and industrial environments.

Q: When should the inspection port be used, and what is its benefit?

A: The inspection port should be accessed during routine maintenance or troubleshooting to easily inspect or replace the bladder. This simplifies maintenance, contributing to reduced service time and lower operating costs.

Q: Where is the tank typically installed, and what orientation is required?

A: Designed for vertical, floor-mounted installation, the tank is usually placed in pump rooms, water distribution setups, or mechanical areas where pressure regulation is essential. Its vertical orientation maximizes space efficiency and operational reliability.

Q: What is the process for replacing the bladder and which materials are available?

A: To replace the bladder, the tank is first depressurized and accessed via the inspection port. Bladders in either Nitrile Rubber (NBR) or EPDM can be fitted, depending on application and chemical compatibility. Instructions are included for user safety and ease.

Q: How does the tank's epoxy powder coating contribute to its long-term usage?

A: The epoxy powder coating, applied both internally and externally, presents a highly durable barrier against corrosion, ensuring the tank withstands prolonged water and air exposure, thus maintaining structural integrity over time.

Q: What are the benefits of using this tank for pressure boosting and hydropneumatic systems?

A: This pressure tank provides stable pressure regulation, reduces pump cycling, and supports silent operation. The replaceable bladder and corrosion-resistant construction ensure long service life, safety, and reliable performance in demanding environments.
